M12 splitter IP68 cable display screen power

M12 splitter IP68 cable display screen power

Standard: IEC 61076-2-105
Ambient temperature - 20 ℃ ~ + 80 ℃
Connector plug-in: TPU; PA
Connector contact: Gold Plated Brass
Plastic material: TPU plastic molded
Terminal material: phosphor bronze, high elastic beryllium copper alloy
Shell material: high copper content brass, high toughness brass
Plating material: overall nickel bottom, all gold 5u

  • description
  • Application
  • Case
  • Download

M12 branch cables LED display screen connection,display screen power branch line system voltage 300V, rated current of 10A two-core connecting line, its pin pin size is 1.5mm in diameter, it can ensure normal operation without heating under 10A rated current, has a good temperature rise circuit, it can use 3-way model to connect multiple screens, and achieve waterproof IP68 level, connectors and wire raw materials use UV resistance Anti UV aging special materials for production, to ensure that outdoor use for many years without aging, cracking, deterioration, fading. We have two to five cores for customers to choose from, and we can also design the water gas seal structure with the tailstock matching the customized model and the power box.

 M12 splitter IP68

M12 design in accordance with IEC specifications

Industry standard interface can be compatible with a variety of sensors and switches

Complete led machine lighting solution

Machine light kit includes LED light, mounting bracket and M12 wire set and connector

Simplify ordering by compressing the entire lighting system into one order number

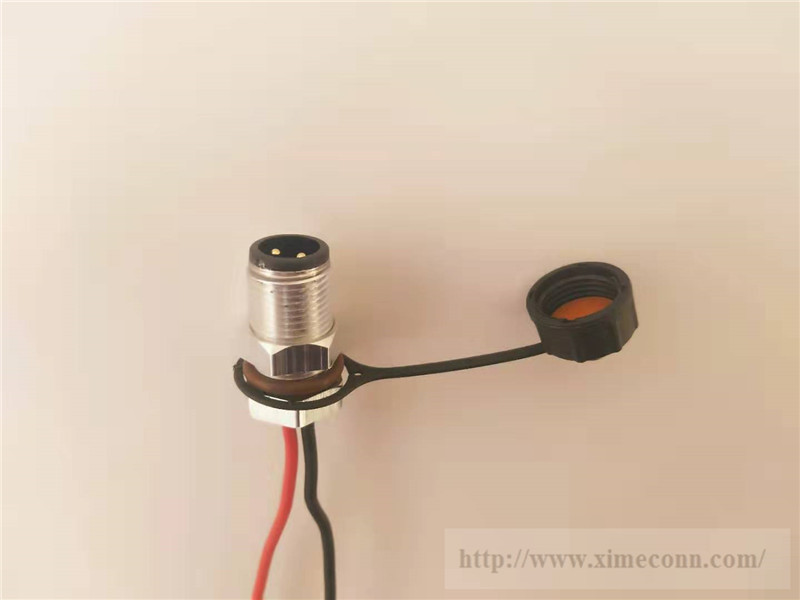

Severe duty socket

Waterproof panel installation design

Comply with NEMA 6p and IP67

Design of palladium nickel plating on gold

Provide more durable high-performance electronic contact

Rated voltage 300VAC / DC, current up to 6.0a

Ideal choice for application of level 2 power supply and network circuit

Severe duty socket

Heavy duty die casting structure and IEC 61076-2-101 standard design

Rugged case provides superior EMI and RFI protection

Meet CE industrial requirements

Shockproof characteristics

Prevents coupling from loosening and remains stable even in extreme vibration



Plastic material: TPU plastic molded

Terminal material: phosphor bronze, high elastic beryllium copper alloy

Shell material: high copper content brass, high toughness brass

Plating material: overall nickel bottom, all gold 5u

Shell plating: copper plated bottom, then overall nickel plating, high salt spray corrosion resistance

Sealing material: fluororubber, cold resistant, high temperature resistant, elastic and stable

Wire matching: high flexibility and bending resistance 10 million times, 5 million times,

Standard: IEC 61076-2-105

Ambient temperature - 20 ℃ ~ + 80 ℃

Connector plug-in: TPU; PA

Connector contact: Gold Plated Brass

Plastic material: TPU plastic molded

Terminal material: phosphor bronze, high elastic beryllium copper alloy

Shell material: high copper content brass, high toughness brass

Plating material: overall nickel bottom, all gold 5u

Shell plating: copper plated bottom, then overall nickel plating, high salt spray corrosion resistance

Sealing material: fluororubber, cold resistant, high temperature resistant, elastic and stable

Wire matching: high flexibility and bending resistance 10 million times, 5 million times,

Standard: IEC 61076-2-105

Ambient temperature - 20 ℃ ~ + 80 ℃

Connector plug-in: TPU; PA

Connector contact: Gold Plated Brass
