M23 Series

Your current location:Home - Products - Circular connector - M23 series

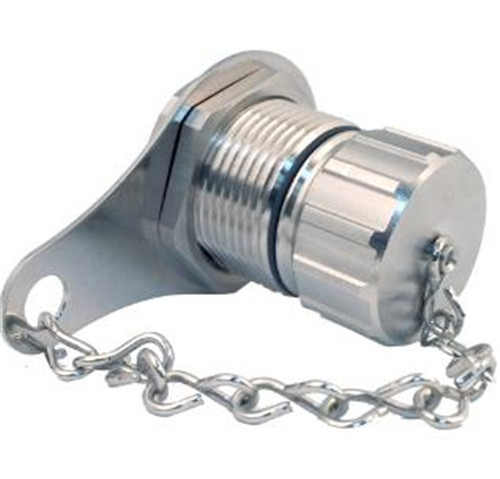

M23 connector IP68

M23 connector IP68

Connector Electrical character
Rating voltage:25V-60V DC ,
Insulation resistance: >100MΩ
Rating current :16PIN/7A,3PIN/10A
Contact resistance of connector ≤5mΩ
Mechanical characteristics:
mating / cycle >500 cycle
Operating temperature: -40°C ~ +115°
Design from DIN EN60664 AND DIN EN61984
3PIN: 0.14-1.5mm
16PIN:0.14-1.0mm

  • description
  • Application
  • Case
  • Download
Detailed Product Description:
Waterproof connector rating is IP67
They can not be used permanently under water.
Connector Electrical character
Rating voltage:25V-60V DC ,
Insulation resistance: >100MΩ
Rating current :16PIN/7A,3PIN/10A
Contact resistance of connector ≤5mΩ
Mechanical characteristics:
mating / cycle >500 cycle
Operating temperature: -40°C ~ +115°
Design from DIN EN60664 AND DIN EN61984
3PIN: 0.14-1.5mm

16PIN:0.14-1.0mm






M23 elbow signal base

M23 extension signal plug

M23 power plug

M23 power base

M23 extension type power plug





  • nameformatsizedatedownload
