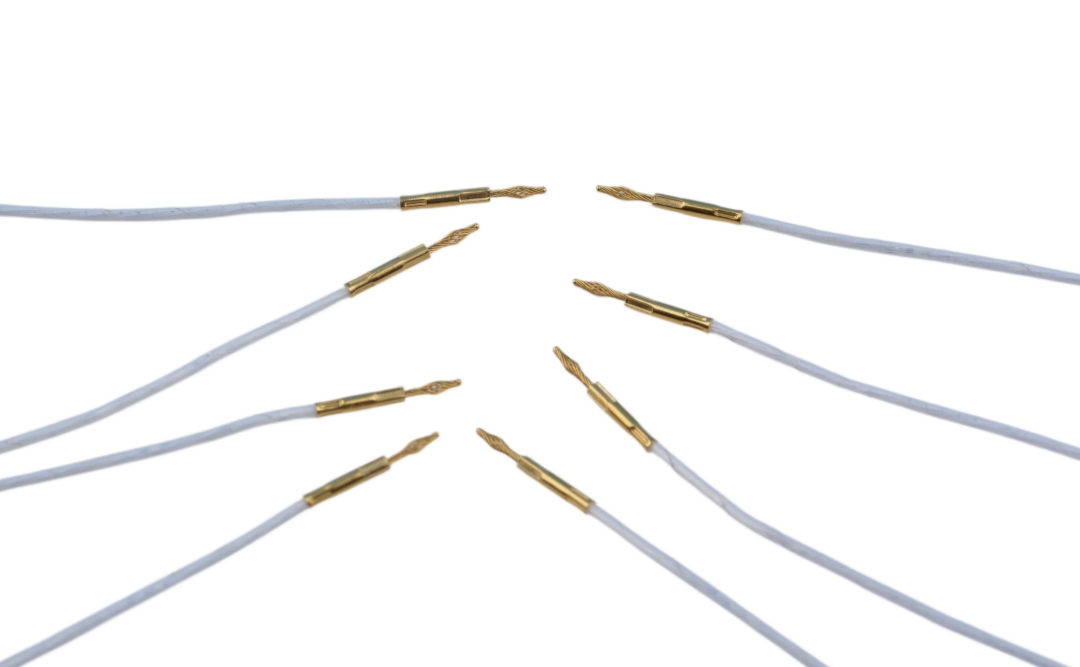

Gold plated twist pin contacts fit medical imaging internal interconnects when the design needs stable low resistance in a small, moving, vibration-rich package. Selection comes down to a few linked choices: gold thickness for wear and oxidation, C17200 spring wire for multi-point contact, laser welding for a secure termination, and a temperature range that matches the machine. Build the specification list from the application, then agree on plating thickness, sample performance, and test documentation with the supplier. Ximeconn supplies medical twist pin connector contacts with 0.8μm or 1.27μm gold options and supports sample and technical review discussions.

FAQ

Q：Why do medical imaging interconnects often require gold plated twist pin contacts?

A：Medical imaging equipment has moving parts, compact routing, and vibration. Gold plating protects the contact surface from oxidation and helps hold a low-resistance path. A twist pin adds multiple contact points inside the socket, so the connection is less likely to open or jump in resistance when the assembly moves. Together, they support stable internal signals in scanners, imaging beds, and detector assemblies.

Q：Which gold plating thickness should I specify for medical imaging equipment contacts?

A：Start with mating cycles, vibration level, and contact resistance limit. A 0.8μm gold layer can suit fixed or low-mating internal links. A 1.27μm layer gives more wear material for joints that mate more often or see more micro-motion. Custom thickness is also possible. Put the final thickness and the acceptance test in the technical agreement so samples and production parts are measured the same way.

Q：What operating conditions should I share with a supplier for medical imaging twist pin connectors?

A：Share the motion profile, mating cycle target, vibration frequency and level, shock events, ambient temperature range, current per contact, signal level, and allowable contact resistance. For imaging equipment, also describe where the contact sits inside the machine. This helps the supplier match C17200 spring wire, C2680 body material, gold plating thickness, and laser welding requirements to your internal circuit needs.
