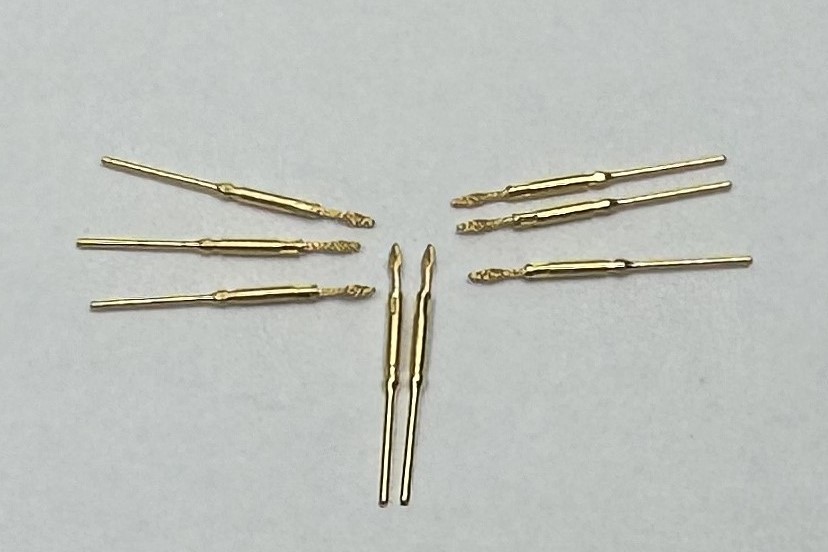

Start with the machine motion, not the part number. The specification list should describe where the contact sits, how far it moves, how often it mates, and what temperature it sees. A detector head that moves on a linear rail has different needs from a fixed board-to-board link inside a power supply. Write down the axis of motion, expected stroke, vibration frequency, shock events, and ambient temperature. Then add the electrical side: signal level, current per contact, contact resistance limit, and allowable voltage drop. This gives a twist pin connector manufacturer a real application picture instead of a single dimensional request. Next, match the contact and plating to those conditions. If the joint will be mated many times during service, choose a thicker gold layer and ask for a wear test that matches your mating cycle count. If the joint is fixed after assembly, a thinner gold layer may be enough while still protecting against oxidation. C17200 beryllium copper is the spring material to discuss when you need multi-point contact under vibration; C2680 brass is the body material. Ask for the contact resistance limit, separation force range, operating temperature range, and vibration and shock data on the drawing. High-reliability termination workmanship, as described in NASA-STD-87394, is a useful reference when you define the cable assembly side of the project. For medical imaging equipment, keep the scope to internal circuits. Implant-grade, sterile, and diagnostic requirements require separate confirmation. The engineering question is whether the contact pair can keep the internal signal stable in your machine. When your team has those conditions, send them to Ximeconn with the expected signal and motion profile. Ask for a sample set, a plating thickness recommendation, and a technical review against your specification list. You can also request project pricing and lead-time confirmation after the sample passes your own test.
