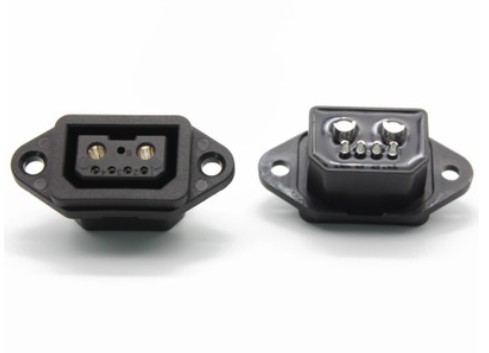

E-bike energy storage connector

This E-bike energy storage connector provied 2pins 40A and more big power and 4 to 6 pins signal 5A connector , it can IP68 waterproof Protection level.

  • description
  • Application
  • Case
  • Download

Electrical Characteristics

Rated Voltage

48V AC/DC

Rated Current

40A and 5A


Withstanding Voltage

750V

Insulation Resistance

20MΩ

Contact Resistance

10mΩ

Mechanical Characteristics

Mating Type

Insertion Force 80N Max,Extraction Force 30N Min

Mating Cycles

5000 Times



Performance

Operation Temperature

-25~+80

Protection Degree

IP67

Wires Specification

Max Outer Diameter

15mm

Mating Length

51mm

Contact Material

Copper alloy plated with gold which conforms to military standard

Wire Section

4mm²/ 2.5mm²/0.3mm²

Electrical Characteristics

Rated Voltage

48V AC/DC

Rated Current

40A and 5A
