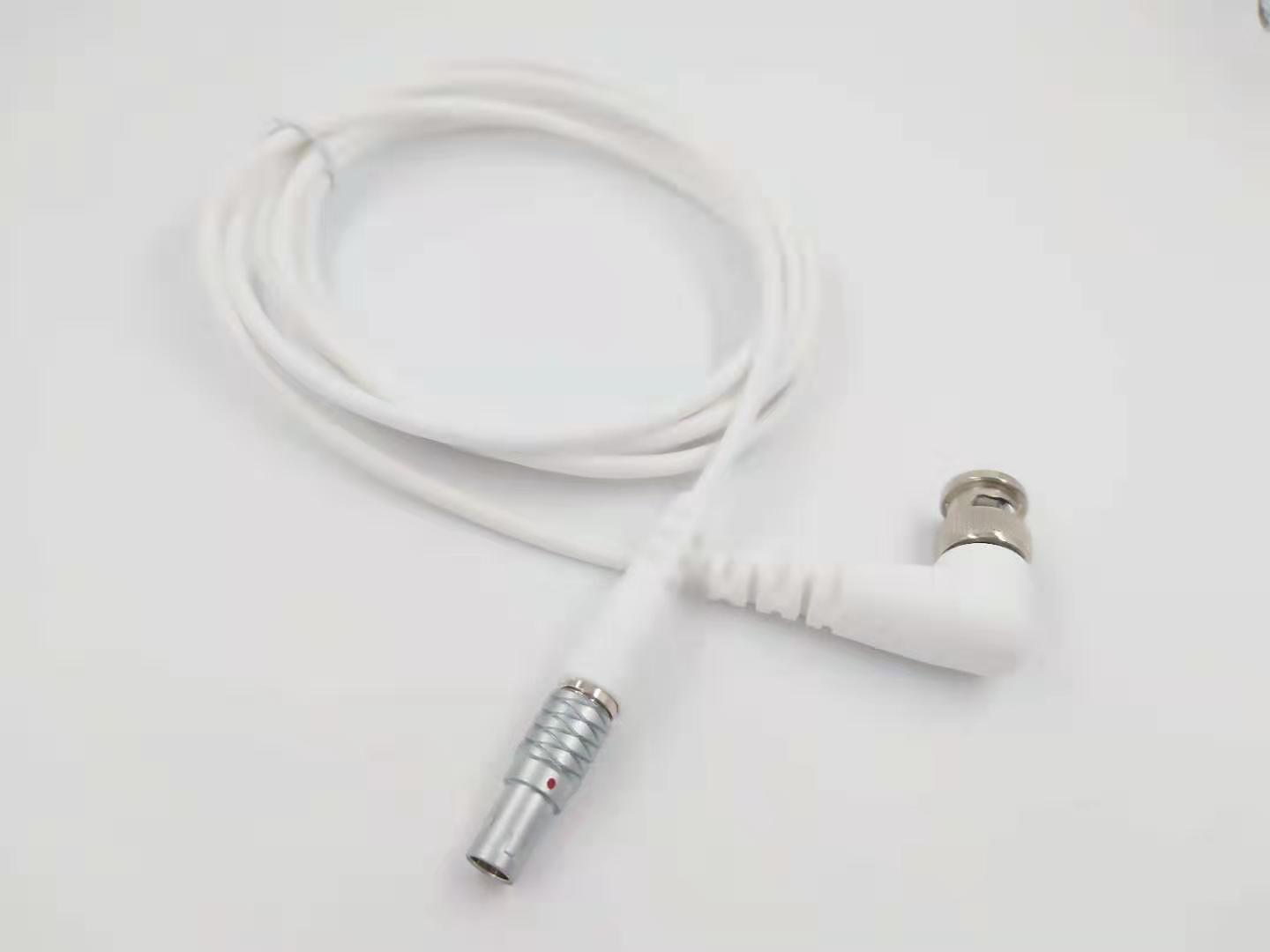

M9 Push Pull connector cable

M9 Push Pull connector cable

xime connector is pleased to announce that the Push-Pull connector B series will be added 8 new models from Nov. 2017,they are FBG/SEG/PRG/PPG/SRG /SFG/PLG male /PLG female straight types. and more encouraging news is with xime connector's high level of technology and quality advantages in industry, the B series products have been applied to the products of a global top UAV drone platform and imaging system manufacturer and xime connector is becoming their important business partner. The customer's favorand recognition is the incentive for xime connector to continue to develop new products.

  • description
  • Application
  • Case
  • Download
  • Connector series: PSG
  • Gender: Male cable with BNC connector
  • Coding: G,k,L
  • Locking type: Self-locking
  • Oreentation type: Straight
  • Part No.: PSGXM.XBXM.XX.XXXX

  • General information

    Ambient temperature: -55℃ ~ +200℃
    Connector insert: PEEK
    Connector contacts: Bronze with gold plated
    Coupling nut/screw: Brass with nickel plated
    Connector body: Brass with Cr plated
    Insulation resistance: ≥100MΩ
    Contact resistance: ≤5mΩ
    IP rating: IP50 in locked condition

    Dimensions

    Size Dimensions(mm)
    A L M S1 S2
    0B 9.5 35 25 8 7
    1B 12 42 31 10 9
    2B 15 49 37 13 12
    3B 18 56.5 41.5 15 15
    The Push Pull connectors are being widely used in medical equipment, aerospace and drone, industrial automation, telecommunication system, automotive, military and other high-endtechnical fields. In recent years, xime connector has been concentrated its R&D capabilities and funds to develop Push-Pull series. Based on 11 years experiences in connector and advanced equipments, Push-Pull becomes ximeconn'smature product family. And ximeconn is proud of becoming one of a few global connector manufacturers who are capable of processing critical component of PEEK insulator at 400 degrees Celsius high temperature.


xime Technology's Push-Pull Products have been more and more widely applied by our customers in various industries,including drone,sophisticated RF medical equipment, film remote camera system,sports events high-speed camera, monitor camera, marine, LED lighting&control system and industrial robot.

xime connector aims at becoming the main stream global manufacturer of the high-end connector solution in this new era!
