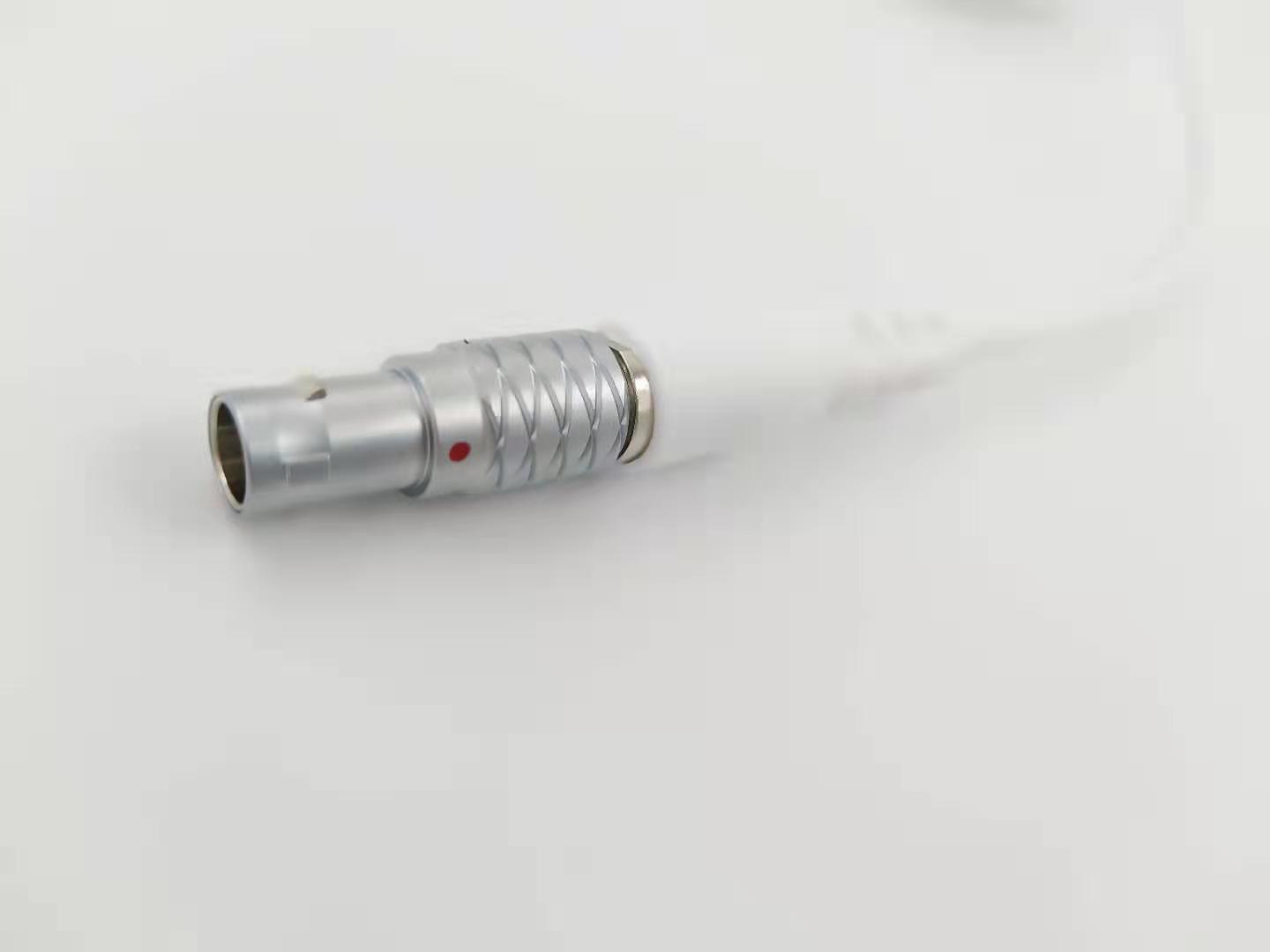

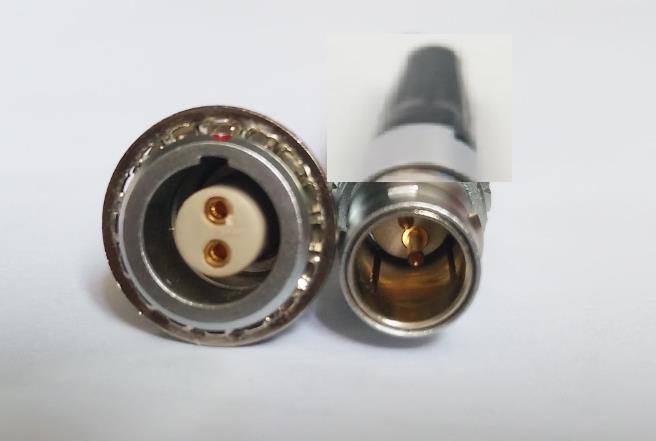

M9 Push-Pull locking connector
M9 Push-Pull locking connector with a professional manufacturer of industrial xime technology, sensor waterproof connectors M5,M8,M9,M12,M16,M23,providing threaded waterproof connectors,m12 adapter,electronic harness design and development,2D 3D design services,solar panel cable,solar connection,solar connector,Medical plugs equipment connector,military equipment waterproof box,car wiring harness,etc.
- description
- Application
- Case
- Download
Specifications：push pull connector
|
Some with UL approvals
|
|
Plastic, metal or stainless steel shells
|
|
360° shielding and IP 67/IP 68 protection
|
|
2 to 8 contacts per connector
|
|
Contacts with solder, screw, or cage clamp termination
|
Product Description：
|
Connector Series
|
M9
|
|
Gender
|
Female
|
|
Coding Type
|
|
|
Assembly Style
|
Solder
|
|
Part Number
|
M9C7001
|
Information：
|
Standard
|
IEC 61076-2-101 Ed 3.0
|
|
Connector body
|
PA66+GF or TPU
|
|
Connector Contacts
|
Brass with gold plated
|
|
Coupling Screw
|
Brass with nickel plated
|
|
Insulation Resistance
|
≥100MΩ
|
|
Waterproof Rating
|
IP67/IP68
|
Electrical Character：
|
Contacts
|
Rated voltage
|
|
Rated current
|
Contact Resistance
|
|
|
A/C
|
D/C
|
|
|
|
2 Pins
|
125V
|
125V
|
4A
|
≤3mΩ
|
|
3 Pins
|
125V
|
125V
|
4A
|
≤3mΩ
|
|
4 Pins
|
125V
|
125V
|
3A
|
≤3mΩ
|
|
5 Pins
|
125V
|
125V
|
3A
|
≤3mΩ
|
|
7 Pins
|
125V
|
125V
|
1A
|
≤3mΩ
|
|
8 Pins
|
125V
|
125V
|
1A
|
＜3mΩ
|
Applications：
|
Automation
|
Measurement & Control
|
|
Aviation
|
Maritime
|
|
Transportation
|
Moister application
|
|
Miniature Sensor
|
Other Outdoor Application
|
|
Medical Equipment
|
Lighting
|
