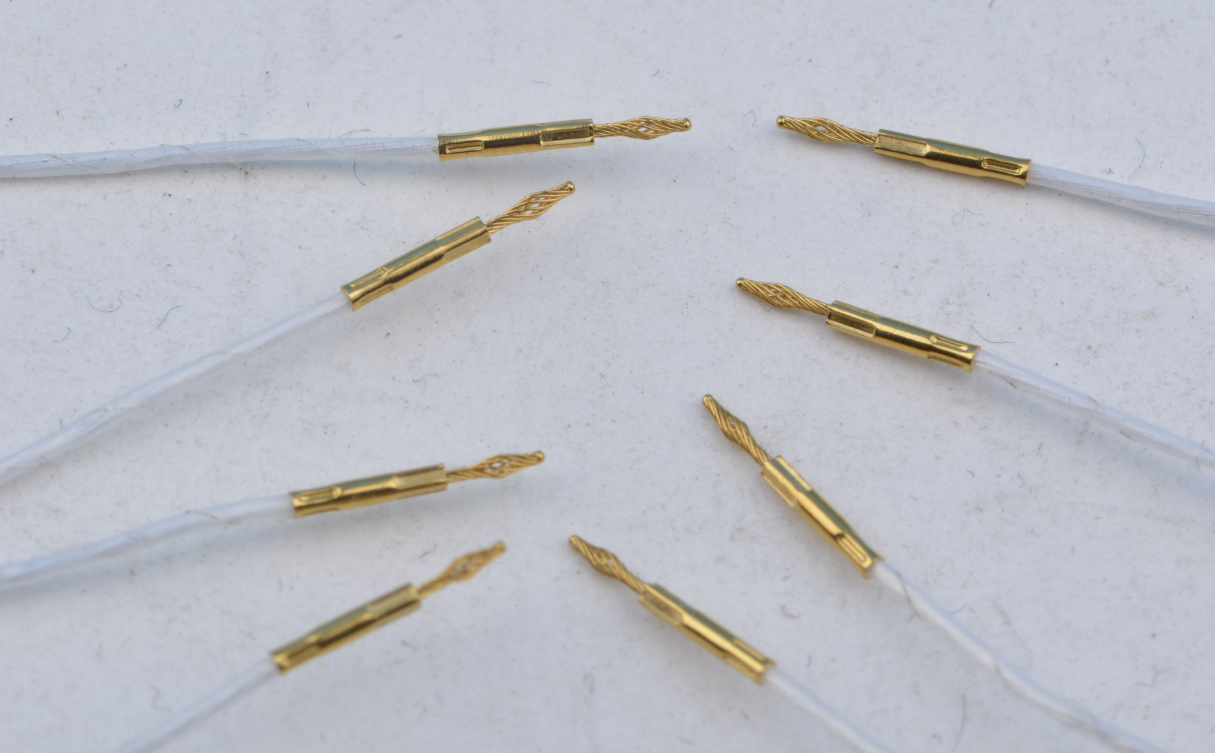

Introduction: The 0.68mm twist pin and the 0.92mm contact bore describe one mating interface, so the fit only makes sense when both numbers are read together.

A structural design engineer reviewing a micro connector drawing often sees two diameters that look unrelated: a pin at 0.68mm and a bore at 0.92mm. On a first pass it is tempting to file them as separate part sizes and move on to the housing layout. That shortcut creates problems later, because a twist pin and its socket behave as one mechanical system rather than two independent parts. The pin's wound strands deflect against the bore wall, and the fit that results depends on the two diameters, their tolerance grades, the gauge used for inspection, and the separation force band. Mapping how those numbers relate to one another makes it much easier to judge whether a contact pair will behave predictably on the assembly floor.
