Choosing a rectangular connector supplier for a dense system comes down to a sequence rather than a single specification. Density raises the stakes on tolerance, plating, and welding, so supplier review should focus on process control rather than catalog breadth. Engineering support before sampling, covering drawing review, model coordination, and an agreed evaluation plan, prevents the most expensive mistakes. A complete RFQ package is the fastest way to turn several vague quotes into one clear decision. If you are working on a compact industrial control, instrumentation, or inspection project, send the 2D drawing and 3D model along with your contact count, current per line, and target gold thickness. The Ximeconn engineering team can review the micro rectangular twist pin connector series against your requirements, prepare samples for evaluation, and confirm MOQ, lead time, and pricing for your build. Start with the product reference or contact form and include your operating conditions so the first reply is useful.

FAQ

Q：What should an industrial sourcing team compare when screening a rectangular connector supplier?

A：Compare engineering response first, then commercial terms. Ask how quickly the supplier returns comments on a drawing, whether they can supply 2D and 3D models for interference checks, and how they control twist pin winding, laser welding, and gold plating thickness. On the commercial side, weigh MOQ, sample cost, production lead time, and whether the current variant needed at 1A, 3A, or 5A is standard or built to order. A supplier who answers the engineering questions clearly is usually in a better position to hold batch consistency later.

Q：How can a supplier support 2D and 3D drawing review for a high contact density micro rectangular connector?

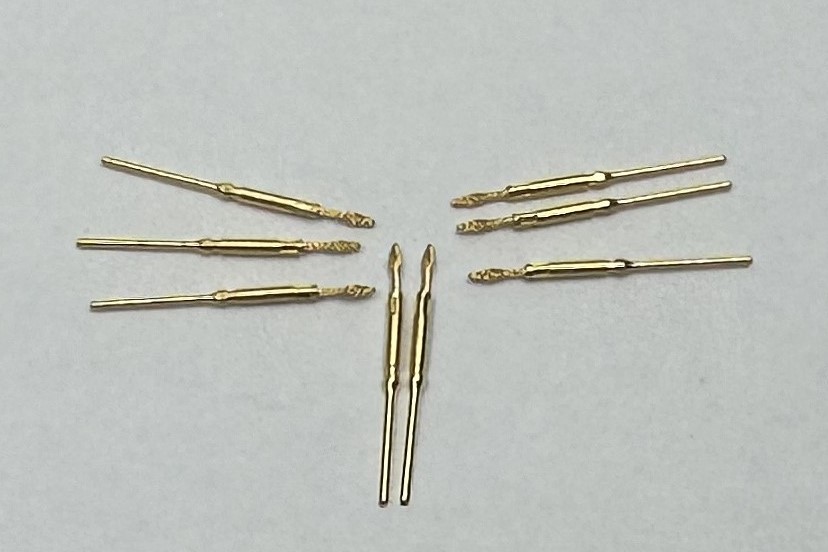

A：A useful review starts with fit. The supplier checks the shell envelope and panel cutout against the 3D model, confirms the contact arrangement fits the available space, and flags any tolerance stack that could affect engagement between the 0.68mm twist pin and the 0.92mm socket. They should also confirm tail termination style and plating thickness so the drawing matches what can be produced. Ask for a marked-up drawing or a written list of open items.

Q：What information belongs in an RFQ for high contact density rectangular connectors?

A：Include the drawing files, contact count, current per line, contact resistance limit, gold thickness, operating temperature range, vibration and shock conditions, and the mating envelope. Add the quantity for the first build, the acceptance criteria you will test against, and the schedule you are working to. Ask explicitly about MOQ, sample availability, sample lead time, and production lead time. With those details in the RFQ, quotes from different suppliers describe the same product and can be compared directly.
