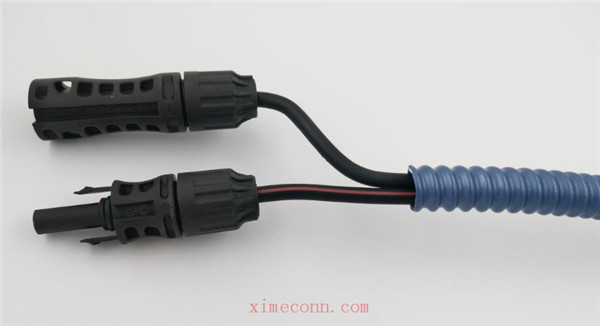

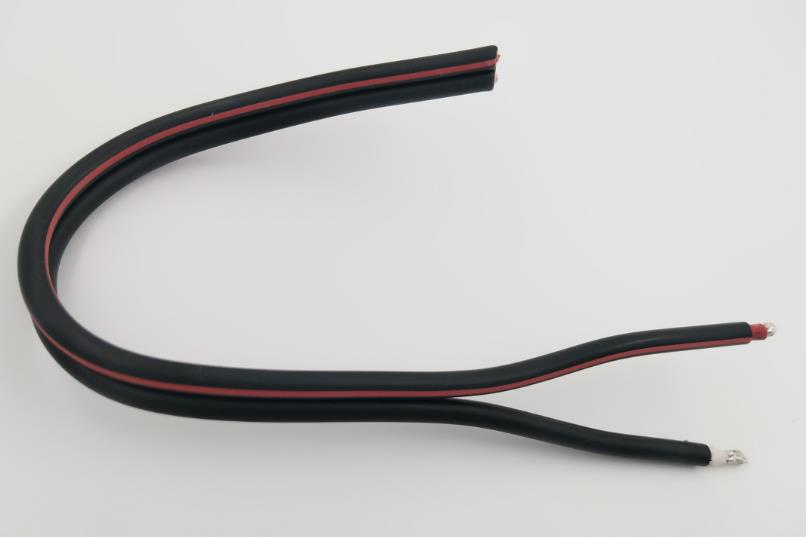

Solar pv connectors EVO2 wire harness

Solar pv connectors EVO2 wire harness

Solar pv connectors EVO2 wire harness 1500V 30A professional manufacture,Xime Connector Technology is a professional manufacturer of industrial sensor waterproof connectors M5,M8,M9,M12,M16,M23,providing threaded waterproof connectors,m12 adapter,electronic harness design and development,2D 3D design services,solar panel cable,solar connection,solar connector,Medical plugs equipment connector,military equipment waterproof box,car wiring harness,etc.

  • description
  • Application
  • Case
  • Download


·  The evo2 wire connector is the latest addition to the xime Connectors PV connector portfolio.

·  Internationally certified with IEC, UL, JET, TUV

·  Approved for 1500 V DC (IEC, JET), 1500 V DC (UL) unrestricted access

·  Suited for all climatic environments thanks to resistance to UV, ammonia, salt-mist spray and high IP class (IP69K)

·  Available as a field and preassembled connector, evo2 wire connector tools can be used

Connector system


¢4mm


Rated voltage



1500V DC(IEC)1)


1500V/1500 DC(UL)2)

Rated current



17A(1.5㎜2)



22A(2.5㎜2;14AWG)


30A(4㎜2;6㎜2;12AWG,10AWG)

Test voltage



8kV/8KV(50Hz,1min.)

Ambient temperature range



-40℃…+90℃(IEC)


-40℃…+75℃(UL)

Upper limiting temperature


+105℃(IEC)


Degree of protection,mated


IP67,IP68(1h/1m)

Contact resistance of plug connectors


0.5mΩ


Safety class





Contact material


Messing,verzinnt


Copper Alloy,tin plated

Insulation material



PC/PA


Locking system



Snap-in


Flame class



UL-94-V0







Connector system


¢4mm


Rated voltage



1500V DC(IEC)1)


1500V/1500 DC(UL)2)

Rated current



17A(1.5㎜2)



22A(2.5㎜2;14AWG)


30A(4㎜2;6㎜2;12AWG,10AWG)

Test voltage



8kV/8KV(50Hz,1min.)

Ambient temperature range



-40℃…+90℃(IEC)


-40℃…+75℃(UL)

Upper limiting temperature


+105℃(IEC)


Degree of protection,mated


IP67,IP68(1h/1m)

Contact resistance of plug connectors


0.5mΩ


Safety class




Contact material



Messing,verzinnt


Copper Alloy,tin plated

Insulation material



PC/PA


Locking system



Snap-in


Flame class



UL-94-V0


EVO2 connector




  • nameformatsizedatedownload
Link: Hybrid connector E-bike power battery pack energy storageM12-connectorsconnectors-cableM12 connectorM8 connectorM5 connectorsconnectors-cable.com
