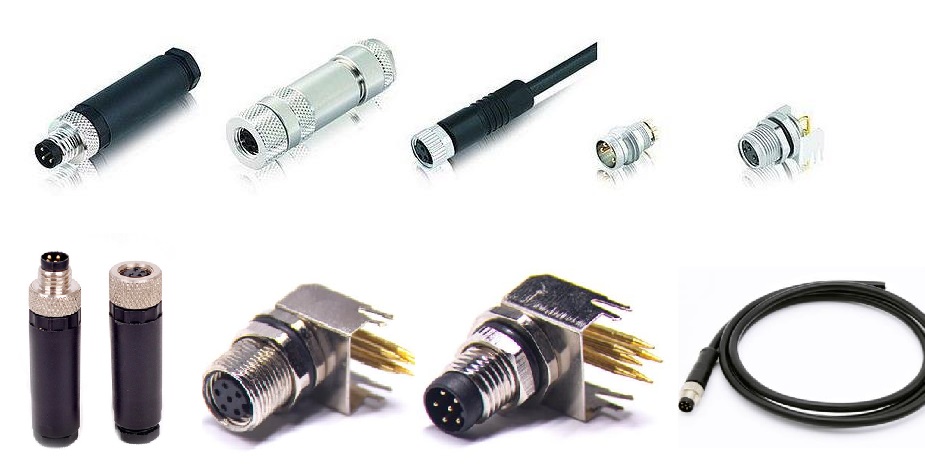

M8 panel mount connector

M8 panel mount connector

M8 panel mount connector waterproof, oil resistant, cold resistant, stable performance, efficient and fast connection, widely used in photoelectric switch, proximity switch, sensor and various industrial wiring system.
The M8 connector is also known as the sensor connector, which is divided into two optional cables with cable and no cable. The cable length of the cable is 1 meter, 2 meters, 5 meters and 10 meters.
The M8 connector has a needle and hole type, screw connection, shell protection class IP67, and a straight head and a bend.
M8 panel mount connector has been widely used in outdoor light boxes, construction machinery, iron and steel production equipment, power equipment, mining machinery, ship machinery, automotive equipment, automatic production equipment, temperature sensor, hydraulic machine, sensor, electromagnetic valve, instruments and meters, pressure transmitter, etc.

  • description
  • Application
  • Case
  • Download


M8 PCB Panel Mount Connectors have two types of A Coding and B coding connectors.


M8 PCB Panel Mount Connectors have two types of A Coding and B coding connectors. The connection methods of power and signal have PCB contacts with through hole Pins , solder contacts with soldering cups and dip soldering with single wires. The installation methods have front panel mount and rear panel mount between M8 PCB connectors and Board. There is a type of M8 connector with flange and it can be fastened by holes in flange and screw.

Field Installable M8 Connections

M8 panel mount connector Safe and reliable communication. Our M8 connector system provides a full solution that includes connectors, IO modules, and cable assemblies. Decrease installation and tooling costs with ximeconn's field installable connectors.

High-speed communication. Our M8 connector system for machine industrial automation and control applications allows the reliable communication in industrial environments. Our connector solution includes an extensive connector range of PCB headers, cable assemblies and IO boxes, and provides users with a future-proof interface that supports higher bandwidth needs of up to 10 Gb/s. Our full range of IP65 and IP67 shielded and unshielded M8 connectors and cable assemblies are easy to install, help decrease downtime and increase production efficiency.



General information :M8 panel mount connector

Standard: IEC 61076-2-104
Ambient temperature: -25℃ ~ +90℃
Connector insert: TPU
Connector contacts: Brass with gold plated
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: Epoxy resin/FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Shielding: optional
IP rating: IP67 in locked condition

Electrical data
core number type Rated current Rated voltage Conductor specification wire jacket Wire length-tail treatment
A/C D/C AWG mm²
03 pins 3A 60V 60V 24 0.25 PUR/PVC PVC Customized
04 pins 3A 30V 30V 24 0.25 PUR/PVC PVC
05 pins 3A 30V 30V 24 0.25 PUR/PVC PVC
06 pins 1A 30V 30V 26 0.14 PUR/PVC PVC
08 pins 1A 30V 30V 26 0.14 PUR/PVC PVC




M8 PCB Panel Mount Connectors have two types of A Coding and B coding connectors.


Safe and reliable communication. Our M8 connector system provides a full solution that includes connectors, IO modules, and cable assemblies. Decrease installation and tooling costs with ximeconn's field installable connectors.


General information: M8 panel mount connector

Standard: IEC 61076-2-104
Ambient temperature: -25℃ ~ +90℃
Connector insert: TPU
Connector contacts: Brass with gold plated
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: Epoxy resin/FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Shielding: optional
IP rating: IP67 in locked condition
Electrical data
core number type Rated current Rated voltage Conductor specification wire jacket Wire length-tail treatment
A/C D/C AWG mm²
03 pins 3A 60V 60V 24 0.25 PUR/PVC PVC Customized
04 pins 3A 30V 30V 24 0.25 PUR/PVC PVC
05 pins 3A 30V 30V 24 0.25 PUR/PVC PVC
06 pins 1A 30V 30V 26 0.14 PUR/PVC PVC
08 pins 1A 30V 30V 26 0.14 PUR/PVC PVC
