M5 Panel Mount Connector

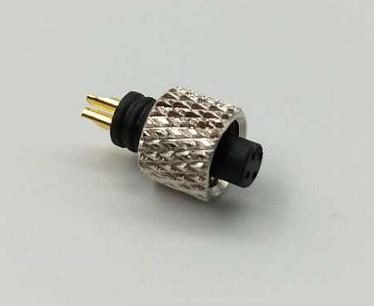

M5 4-pin PCB through-hole soldered board-side female connector
This type of M5 4-pin female plug-in female connector can be soldered to the board through the PCB through-hole and can be mass-produced orthrough a reflow oven for dramatic productivity gains.

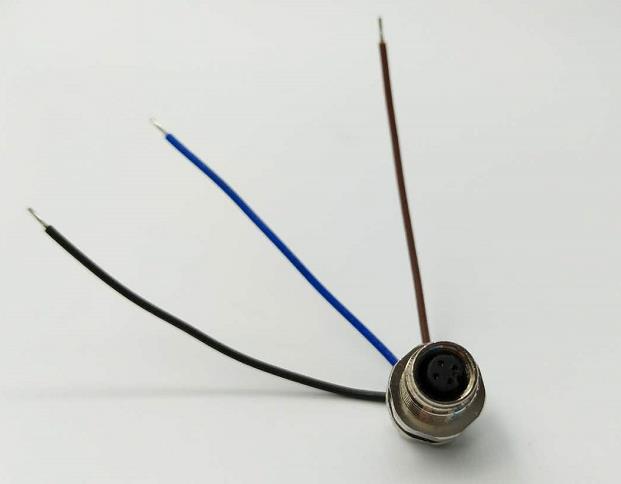

M5 PCB lock-plate female connector, front mount, single wire with soldering
The PCB M5 female connector is available in 3-way and 4-way connectors. It can be mounted from the front of the PCB and soldered to a single wire.M5 panel mount connector

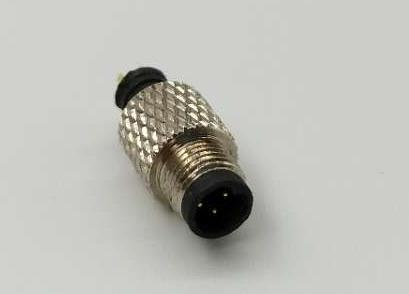

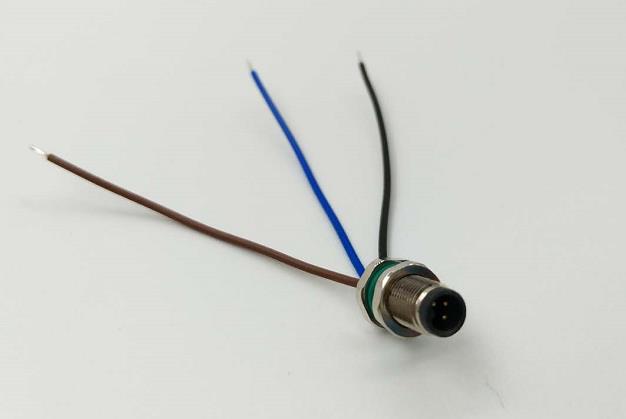

Front M5 Solder Type Male Connector 3-pin 4-pin
The pre-board M5 machine is easily connected to the female on the board. Simi Connection Technology provides high-quality industrial waterproof connectors to customers worldwide.

  • description
  • Application
  • Case
  • Download


M5 4-pin PCB through-hole soldered board-side female connector This type of M5 4-pin female plug-in female connector can be soldered to the board through the PCB through-hole and can be mass-produced .

M5 panel mount connector,M5 4-pin PCB through-hole soldered board-side female connector

This type of M5 4-pin female plug-in female connector can be soldered to the board through the PCB through-hole and can be mass-produced through a reflow oven for dramatic productivity gains.
M5 PCB lock-plate female connector, front mount, single wire with soldering
The PCB M5 female connector is available in 3-way and 4-way connectors. It can be mounted from the front of the PCB and soldered to a single wire.
Front M5 Solder Type Male Connector 3-pin 4-pin
The pre-board M5 machine is easily connected to the female on the board. Simi Connection Technology provides high-quality industrial waterproof connectors to customers worldwide.


General information:M5 panel mount connector
Standard: IEC 61076-2-105
Ambient temperature: -20℃ ~ +80℃
Connector insert: TPU;PA
Connector contacts: Brass with gold plated
Connector over-molding: TPU
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Shielding： Unavailable
IP rating: IP67 in locked condition

Electrical data
core number type Rated current Rated voltage Conductor specification wire jacket Wire length-tail treatment
A/C D/C AWG mm²
03 pins A 1A 60V 60V 28 0.14 PUR/PVC Customized
04 pins A 1A 60V 60V 28 0.14 PUR/PVC


M5 4-pin PCB through-hole soldered board-side female connector

M5 panel mount connector,M5 circular connectors for sensors, brakes, actuators and automatic control system connection. M5 Sensor Connectors and Brake Connectors M5 Male Straight Plug Connector, M5 Male Straight Plug Connector, M5 PCB Front Male Connector, M5 Straight Solderable Straight Male Connector with Male Thread , PCB board M5 male, M5 board front loading / loading mother.
